Creating Actions

One of major benefits of working with “Some Code” is how easy it is to create custom actions.

Everything is user definable:

1. Action Icon is user definable
2. The design of Metadata tab is user definable
3. Parameters list is user definable
4. Parameter type is user definable
5. Variables list is user definable
6. Action script is user definable

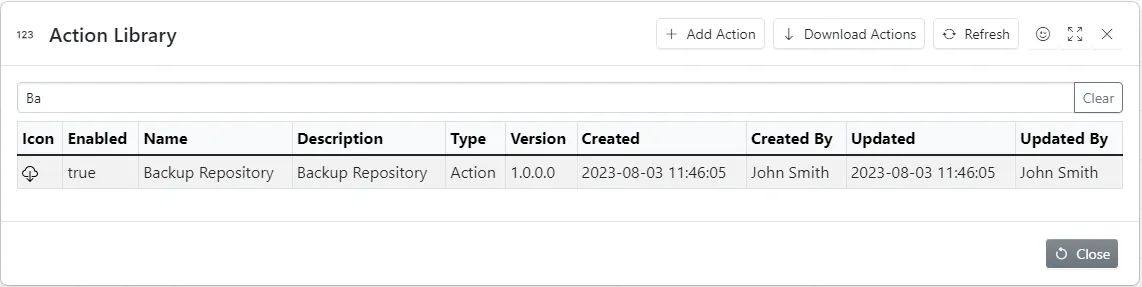

Action Library

All currently installed actions are stored in Action library. This dialog allows to create new actions or download actions the from public library

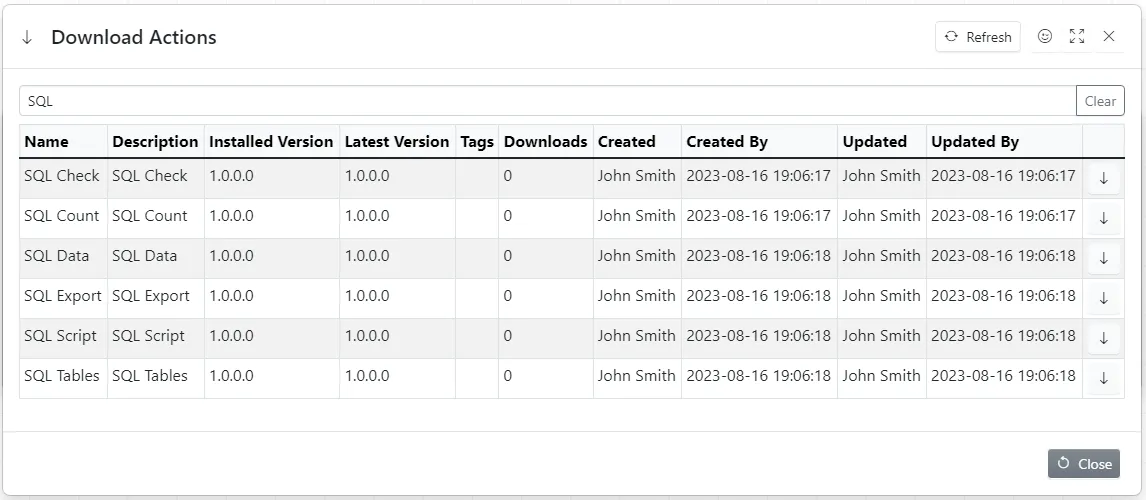

Download Actions

Creating New Action

To create new action click Add Action, fill in all necessary fields and press Save button

Action icons

• We used bootstrap icons for most our actions and we recommend our users to do the same
• If necessary they can be easily modified using InkScape

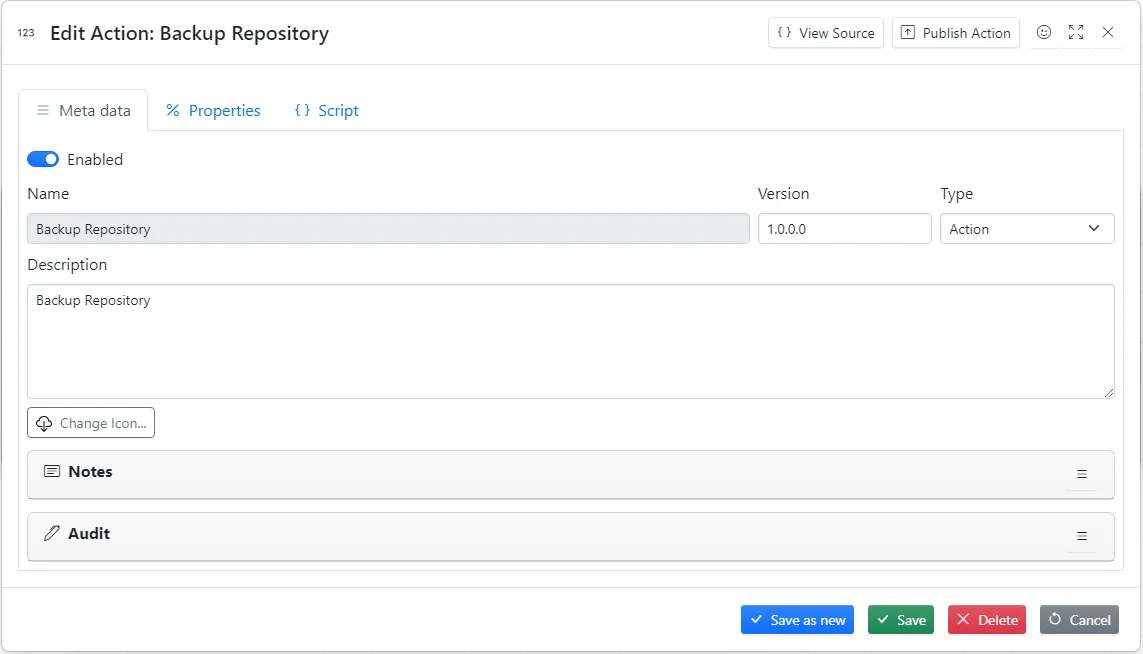

Metadata Tab

Metadata Tab defines action look and feel

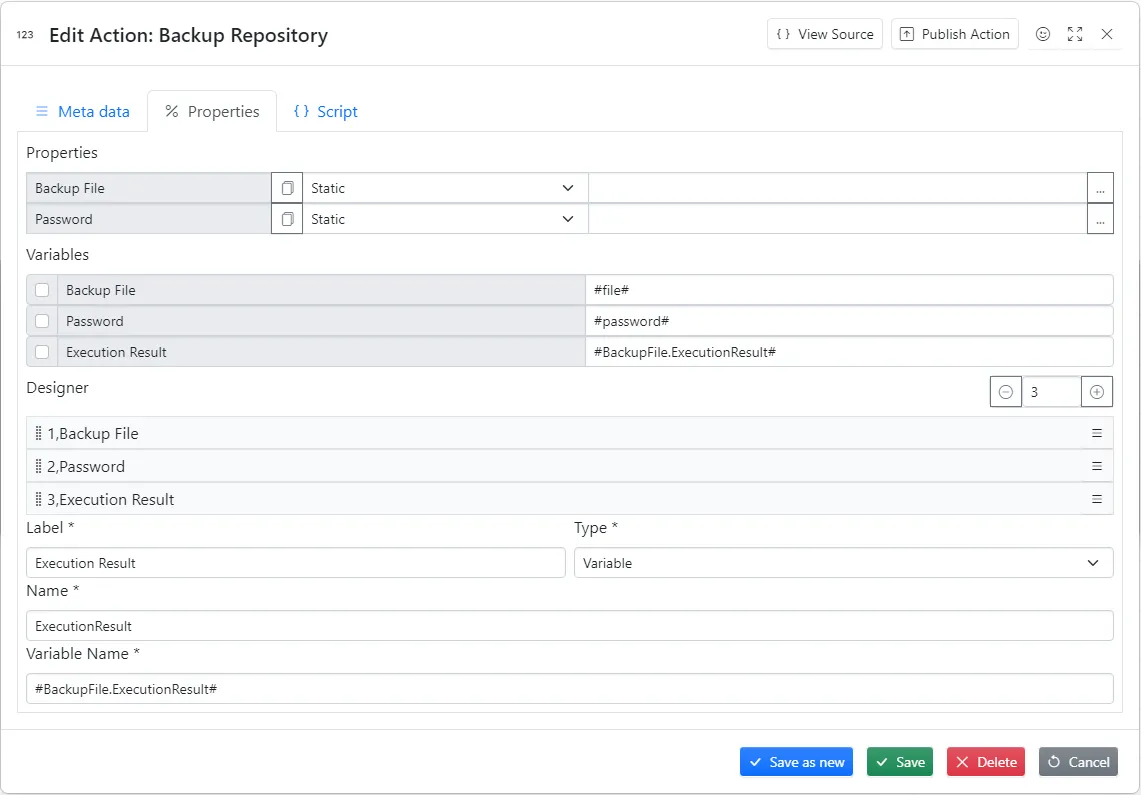

Properties Tab

• To add new property click plus
• Properties can be rearranged using drag and drop
• Always use password type for password parameters
• Always add ExecutionResult Variable
• It is extremely important to select correct property type

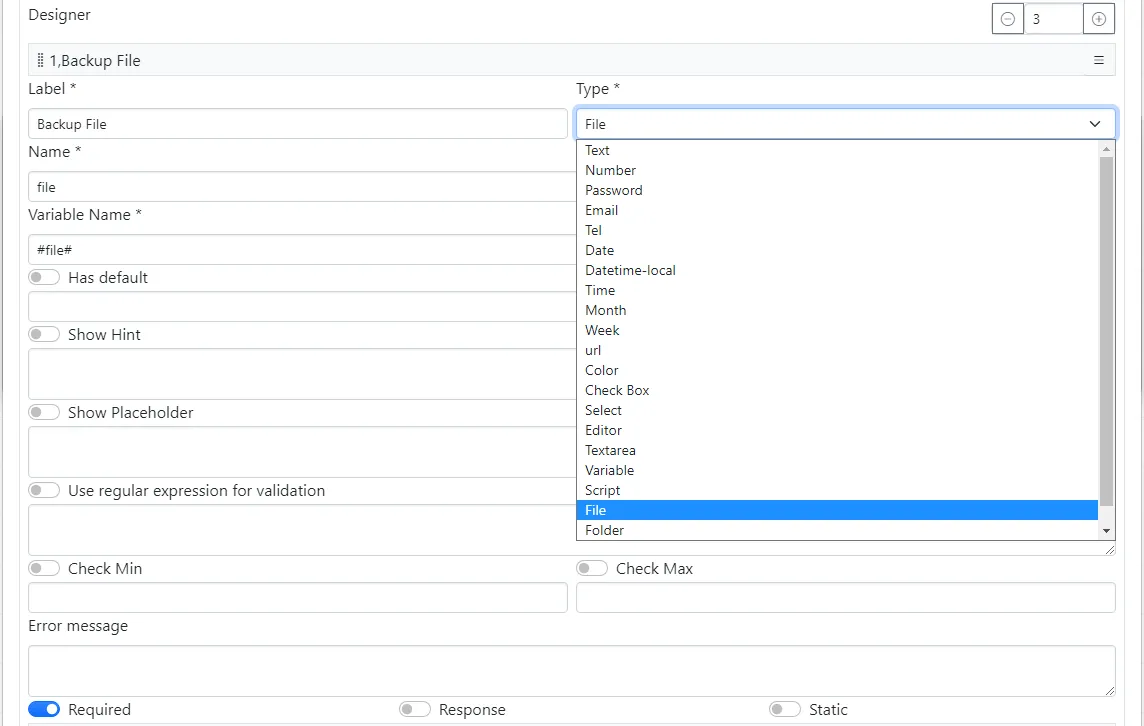

Property types

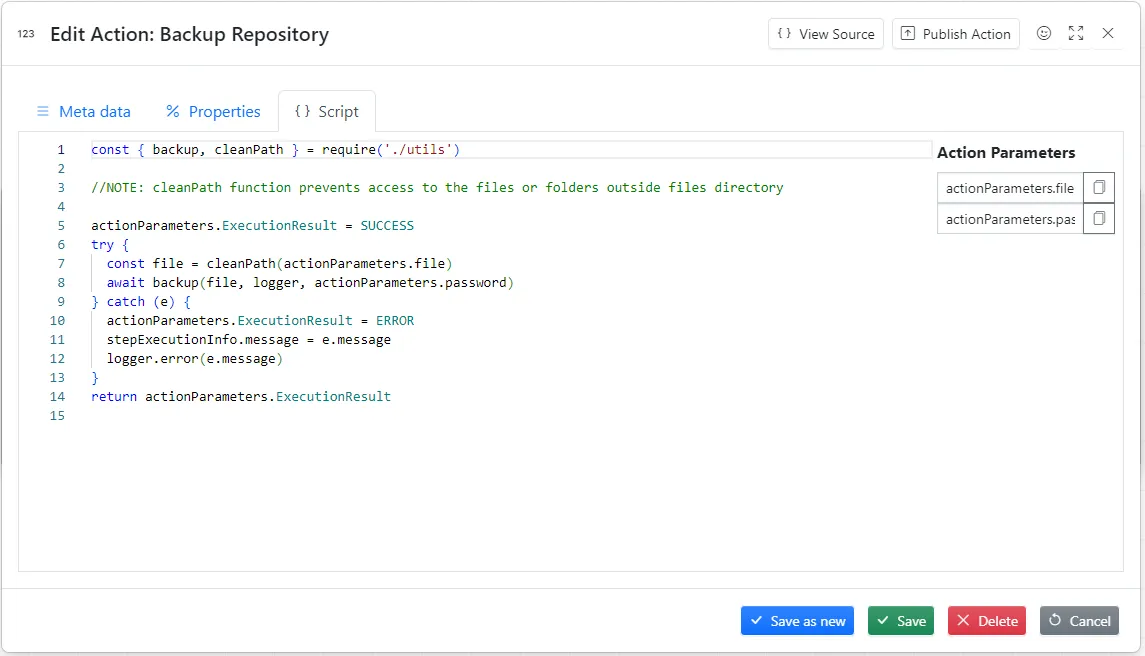

Script Tab

Script Example

const { backup, cleanPath } = require("./utils");

//NOTE: cleanPath function prevents access to the files or folders outside files directory

actionParameters.ExecutionResult = SUCCESS;
try {
  const file = cleanPath(actionParameters.file);
  await backup(file, logger, actionParameters.password);
} catch (e) {
  actionParameters.ExecutionResult = ERROR;
  stepExecutionInfo.message = e.message;
  logger.error(e.message);
}
return actionParameters.ExecutionResult;

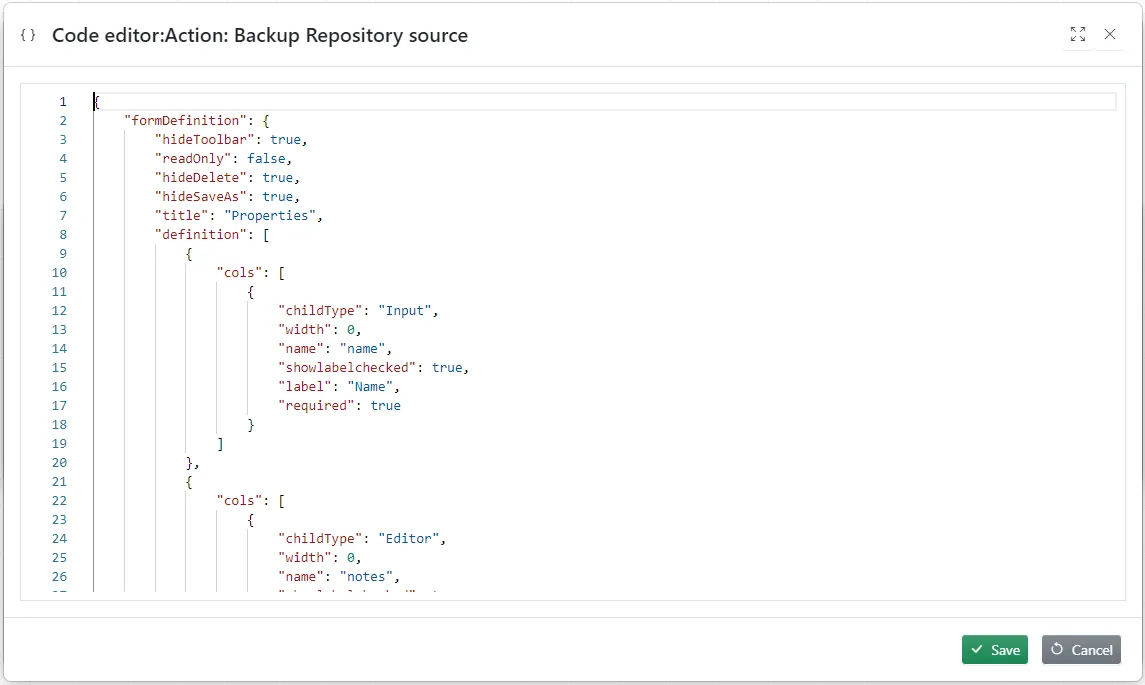

Action code editor

Action definition is stored in JSON format. Code editor allows advanced users to edit Action definition manually.

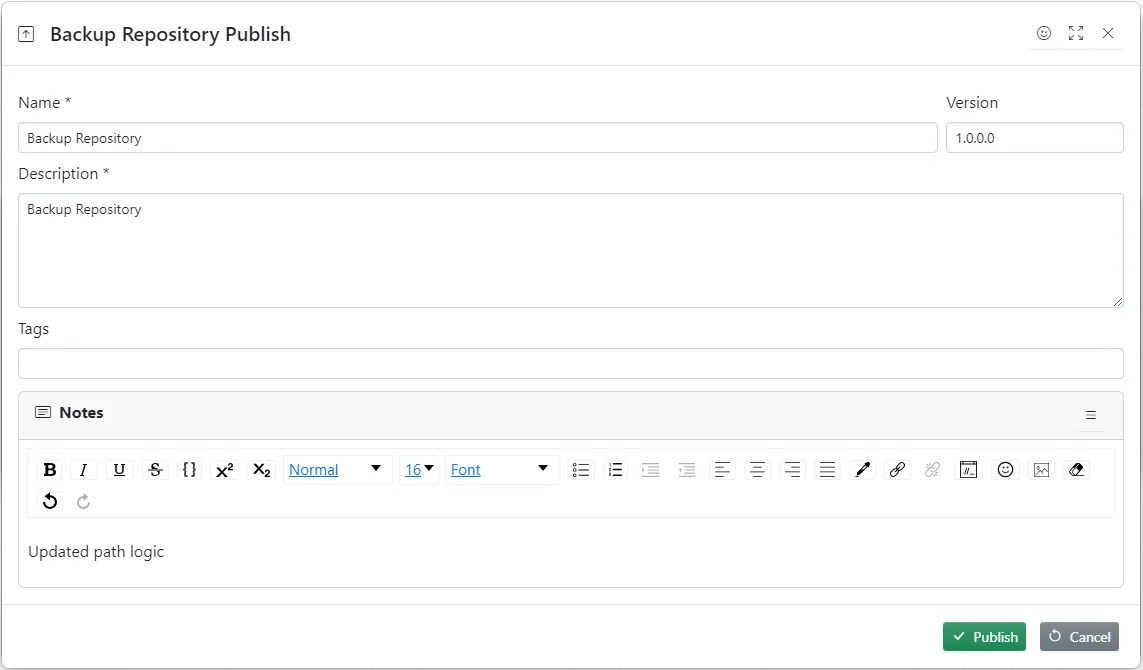

Publish Action

This dialogue publishes action to the public library so it can be used by all users of Some code

Video Tutorial

24 August 2023
